উৎপত্তি স্থল: | চীন |
---|---|
পরিচিতিমুলক নাম: | Runpaq |
সাক্ষ্যদান: | NONE |
মডেল নম্বার: | K33 |
ন্যূনতম চাহিদার পরিমাণ: | 1000 টুকরা |
প্যাকেজিং বিবরণ: | শক্ত কাগজ |
ডেলিভারি সময়: | 15-21 দিন |
পরিশোধের শর্ত: | টি/টি, এল/সি, ডি/এ, ডি/পি, ওয়েস্টার্ন ইউনিয়ন |
যোগানের ক্ষমতা: | 200000 সেট/মাস |
সাধারণ ভোল্টেজ: | লিথিয়াম ব্যাটারি 2.5-5VDC | আবেদন: | খোলা / বন্ধ হিটিং ভালভ |
---|---|---|---|
খালি রান কারেন্ট: | <40 mA (23 C) (মোটর #300) | সম্পূর্ণ লোডিং এ কারেন্ট: | প্রায় 650 এমএ |
মোটর: | DC2.5V #300 মোটর | টর্ক: | 2 এনএম (1600: 1) |
খোলা / বন্ধ করার সময়: | <10 এস (1600: 1) | হ্রাসকৃত অনুপাত: | 2000: 1 (DN15 - 25 বল ভালভের জন্য); |
সুরক্ষা: | আইপি 67 | মডেল: | K33 |

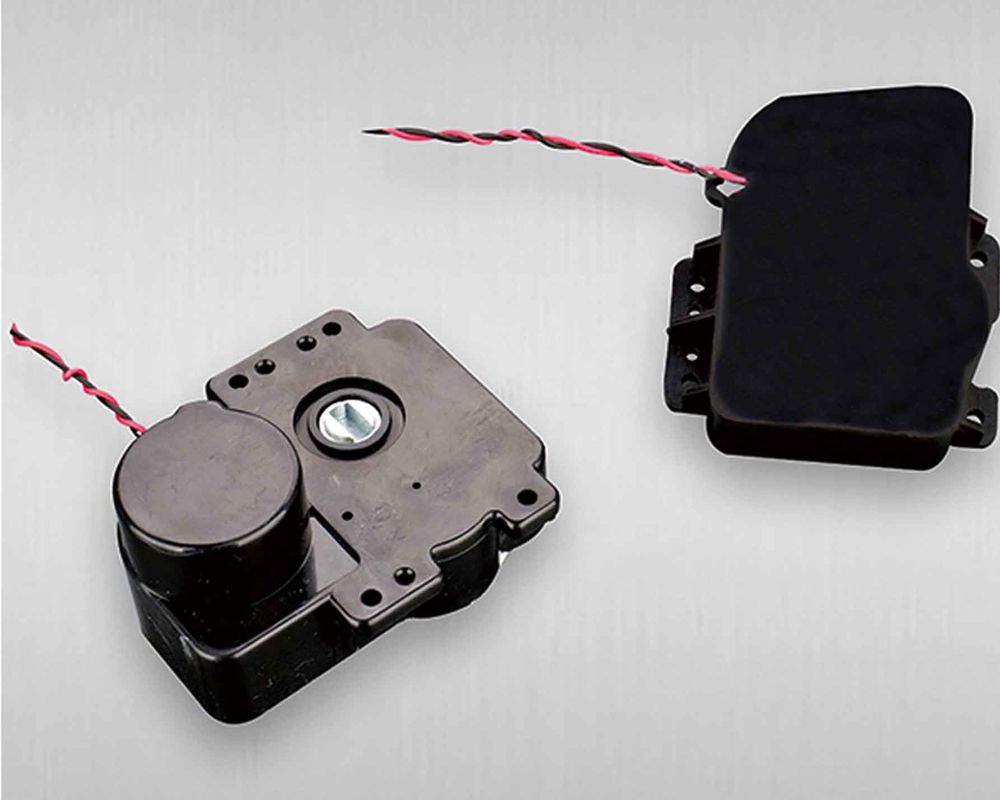

2NM dC2.5V actuator motor, 3 way mini motorized ball valve
Product description
The brass ball valve need be driven to be open or close, or an open angle by a DC motor actuator. Our DC synchronized gear actuator motors are available with DC2.5V-5V lithium powered, torque: 1NM - 9 NM at different velocity reduction ratio. The robust structure, ensures extremely long service life cycles more than 20,000 times, also different protection level. You'll get a wide selection of spare parts for your products in the application on HVAC, automation, IOT smart city, zone control valve, heating valve, AMR water meter, etc. A mini motorized ball valve, can be 2 way or 3 way full port, which are used for the flow control, zone valve, heating valve control, smart water meter open / close.
Technical data-Model K33
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <40 mA @ 3.6V, 23ºC
3. Current with max loading: <650 mA (motor #300)
4. Torque: >2 NM (2000:1)
5. Open/close time: <10 S (2000:1)
6. Velocity reduction ratio: for DN15, DN20, DN25 ball valve (2000:1)
7. Protection: IP67
Wiring definition
No | Color of wire | Definition |
1 | blue | on position signal, valve open |
2 | white | on position signal, public |
3 | yellow | on position signal, valve close |
4 | black | positive (+) |
5 | red | negative (-) |
